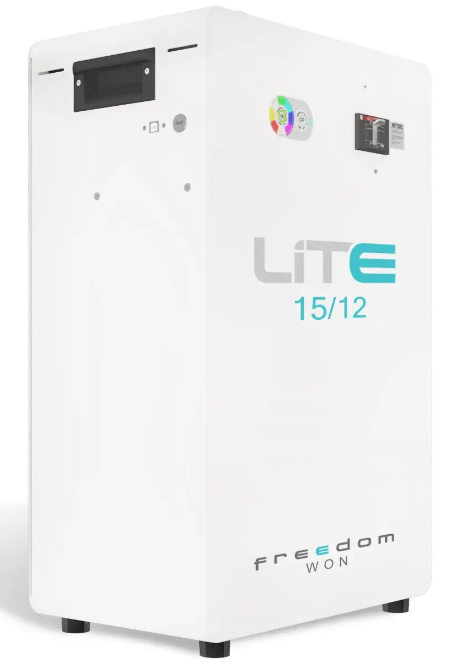

Freedom Won Lite Home 15/12N-1 LiFePO4 Battery

The Freedom Won Lite Home LiFePO4 battery is the perfect high quality battery for all your residential and industrial solar solutions.

Technical Data:

• Total Energy Capacity: 15kWh
• Energy available at 80% DOD: 12kWh
• Energy available at 90% DOD: 13.5kWh
• Current Capacity: 300Ah
• Nominal Voltage: 52V to suit 48V Inverters, Min 47V, Max 56V
• Continuous Charge & Discharge Rate: 1C = 300A = 15kW
• Max Discharge Rate: 1.6C = 480A = 23kW for 5 minutes every 30 minutes
• Warranty: 4000 cycles @ 80% DOD or 10 Years
• Service Life: > 5500 cycles @ 80% DOD (Depth of Discharge)
• Weight: 130kg
• Dimensions: 745 x 490 x 290 mm
• Enclosure: Aluminium, powder coated white front, rated for indoor use
• DC Connection: 2 sets of 50mm^2 cable x 1.8m (No lugs included)
• Control Interface: RJ45 Socket x 2: CAN Bus for interfacing with compatible inverters and system controllers, Communication for connection of parallel batteries. (NOTE: All parallel batteries must be all of the same model)
• Protection: BMS with Shunt trip circuit breaker, Overcurrent, Under voltage, Over Voltage, Temperature
• Human Interface: State of Charge (0 to 100%), Error light, Error reset button, USB plug for programming

Features:

• This battery is compatible with most inverters on the market
• These batteries can be expanded up to 10 batteries in parallel
• 10-year local manufacturer’s warranty
• Design life of >16 years or 5500 cycles at 80% DOD
• Support high discharge and charge power 1C rate 15kW continuous
• Batteries can be charged in shorter time due to high charge capability

Downloads:

• Datasheet
• CE Declaration of conformity
• Safety Transport & Handling Documentation
• UN38.3 Conformity Test
• Inverter Compatibility List
• Warranty
• Installation Manual
